Rotary Lemo Interconnect


SMS Precision Tech's Rotary Lemo Interconnection is made from a combination of SMS-167 material and Nitronic 50 to have great corrosion resistance and long life. The removable fin can easily be trimmed with the SMS fin cutter plates and replaced in the field. This assembly has fewer parts than standard tensor style interconnect assemblies to reduce costs for replacement parts. The Rotary Lemo Interconnect assemblies will mate with standard tensor pressure housings and intermodule ends for easy integration into your fleet. There are two pressure seals, both in the shaft and the bulkhead, to ensure costs are at a minimum in case of an invasion. With the keyed screw connection in the Rotary Lemo Connectors, the broken and bent 10 pin connector days are over.

Ready to Order? Give us a call at 832-286-1010, or fill out the form on our contacts page by clicking here.

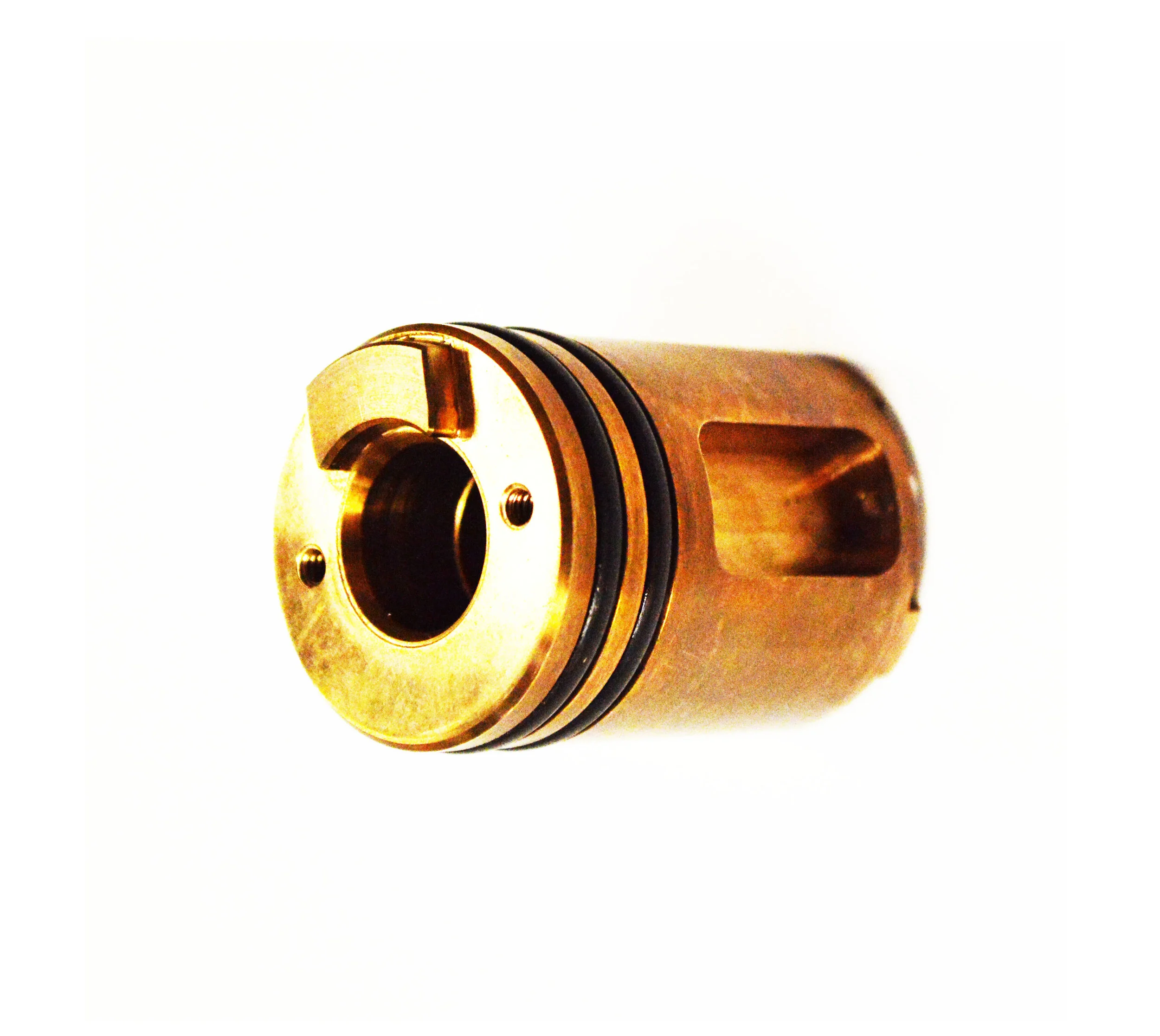

             Rotary Lemo
               Bulkhead
         SMS-3350-014



         Rotary Lemo Fin
              (4 Blade)
        3 1/4" OD-N50
     Custom OD Available
     SMS-3350-010-01

             Rotary Lemo
            Bulkhead Cap
                  BeCu
         SMS-3350-013

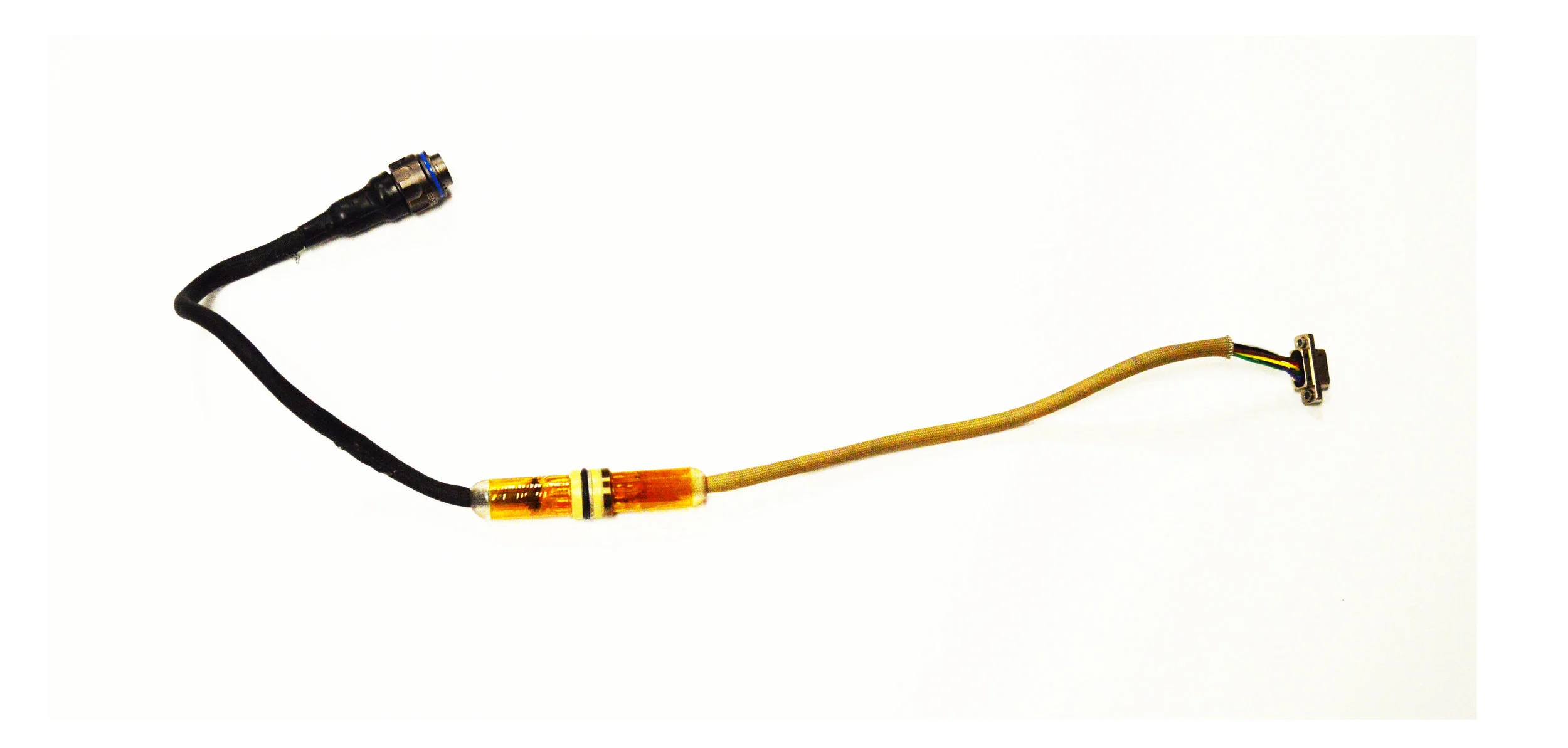

            Rotary Pigtail
             (Downhole)
         15SNF MDM to
        10S Flange Lemo
      SMS-PT-A-10050

            Rotary Lemo
         Integrated Shaft
              SMS-167
        SMS-3350-011

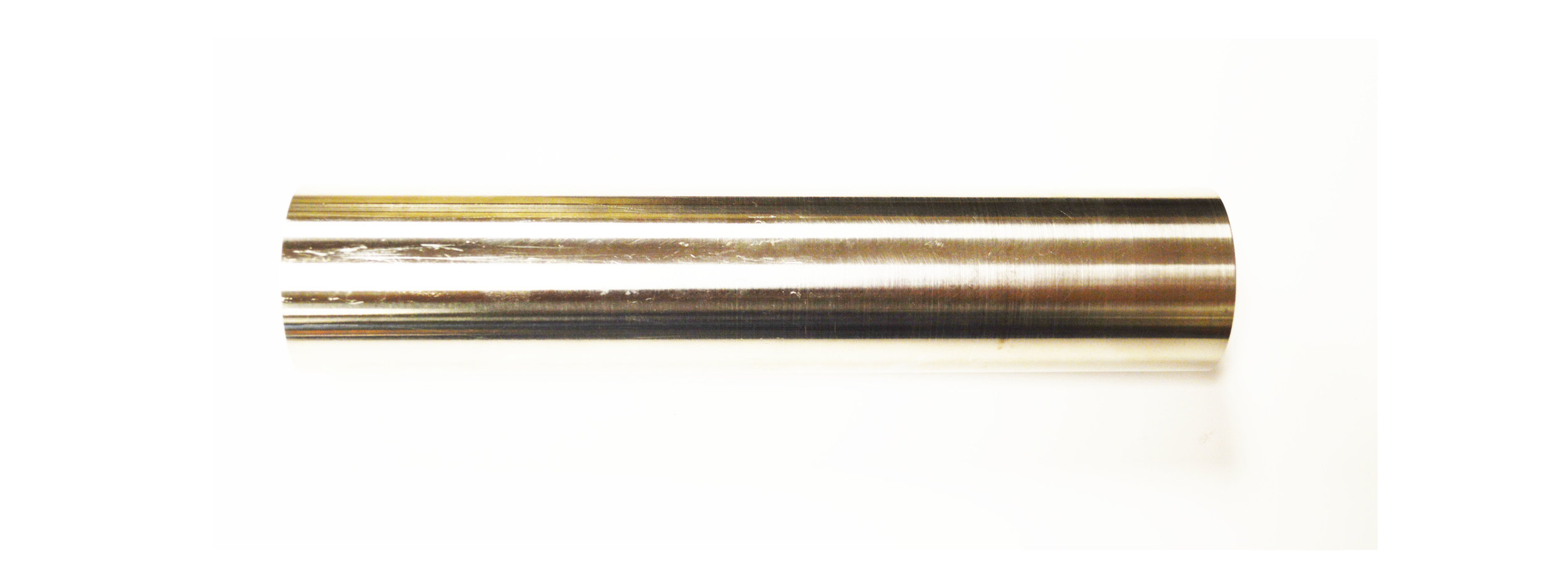

            Rotary Lemo
           Wire Housing
              SMS-167
          SMS-3350-12

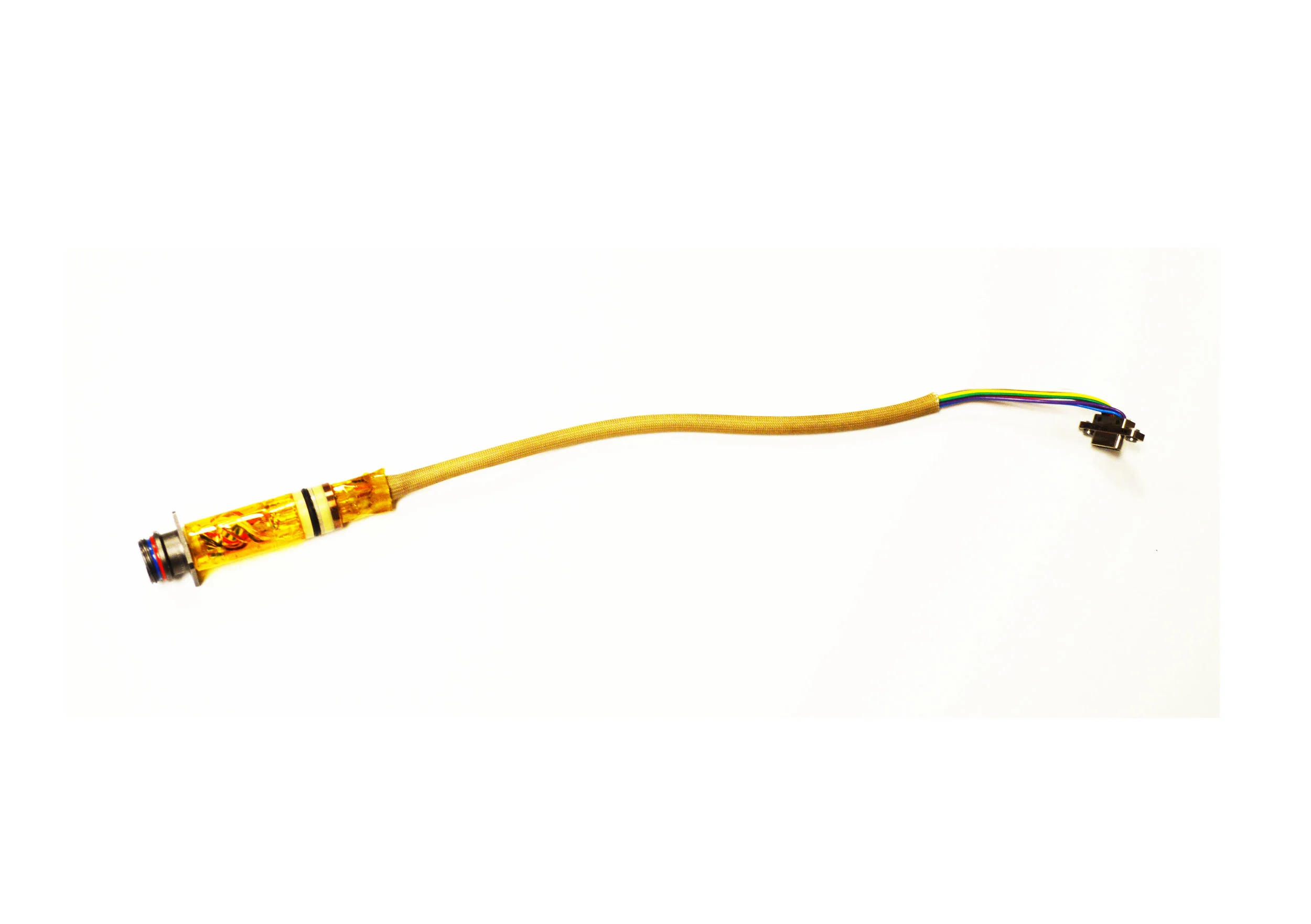

            Rotary Pigtail
                (Uphole)
         15PWF MDM to
              10P Lemo
       SMS-PT-A-10051
