Muleshoes & Parts

SMS is a leading supplier of muleshoes and muleshoe components because we carry such a large selection of designs. All Muleshoe Assemblies are available in three sizes, Small (3 ½”), Medium (4 ¾”) & Large (6 ½”).  Custom sizes also available.

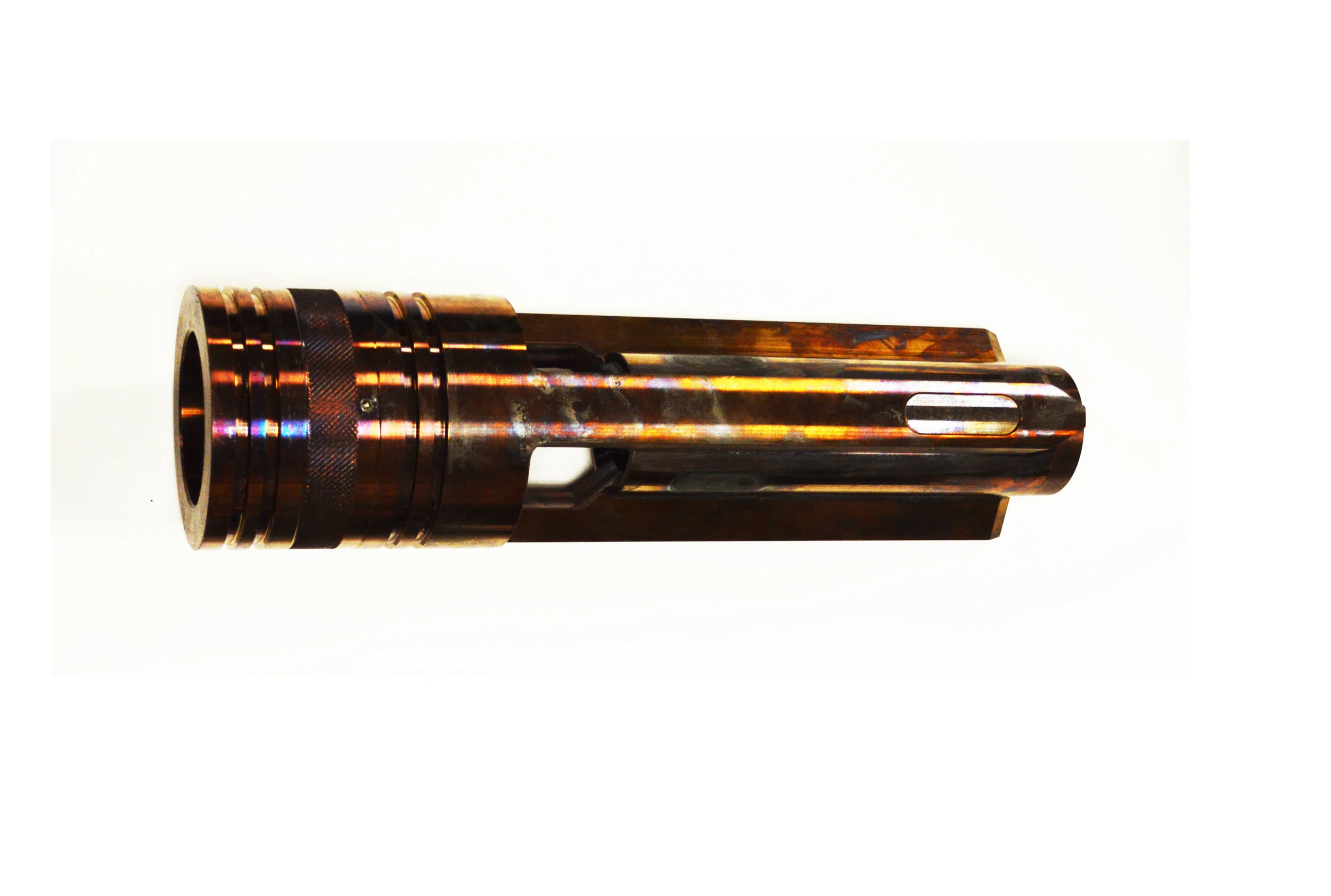

3-Leg Design – Standard industry design with two material options, 17-4 H900 Stainless Steel and Nitronic 50.

2-Leg Design – SMS Design, available in 17-4 H900 Stainless Steel and Nitronic 50.  The 2-Leg Muleshoe reduces the wash points thereby increasing the life of the muleshoe assembly.  When you order run the 2-Leg Muleshoe Assembly in Nitronic 50 material, you’ve got the longest lasting design available.

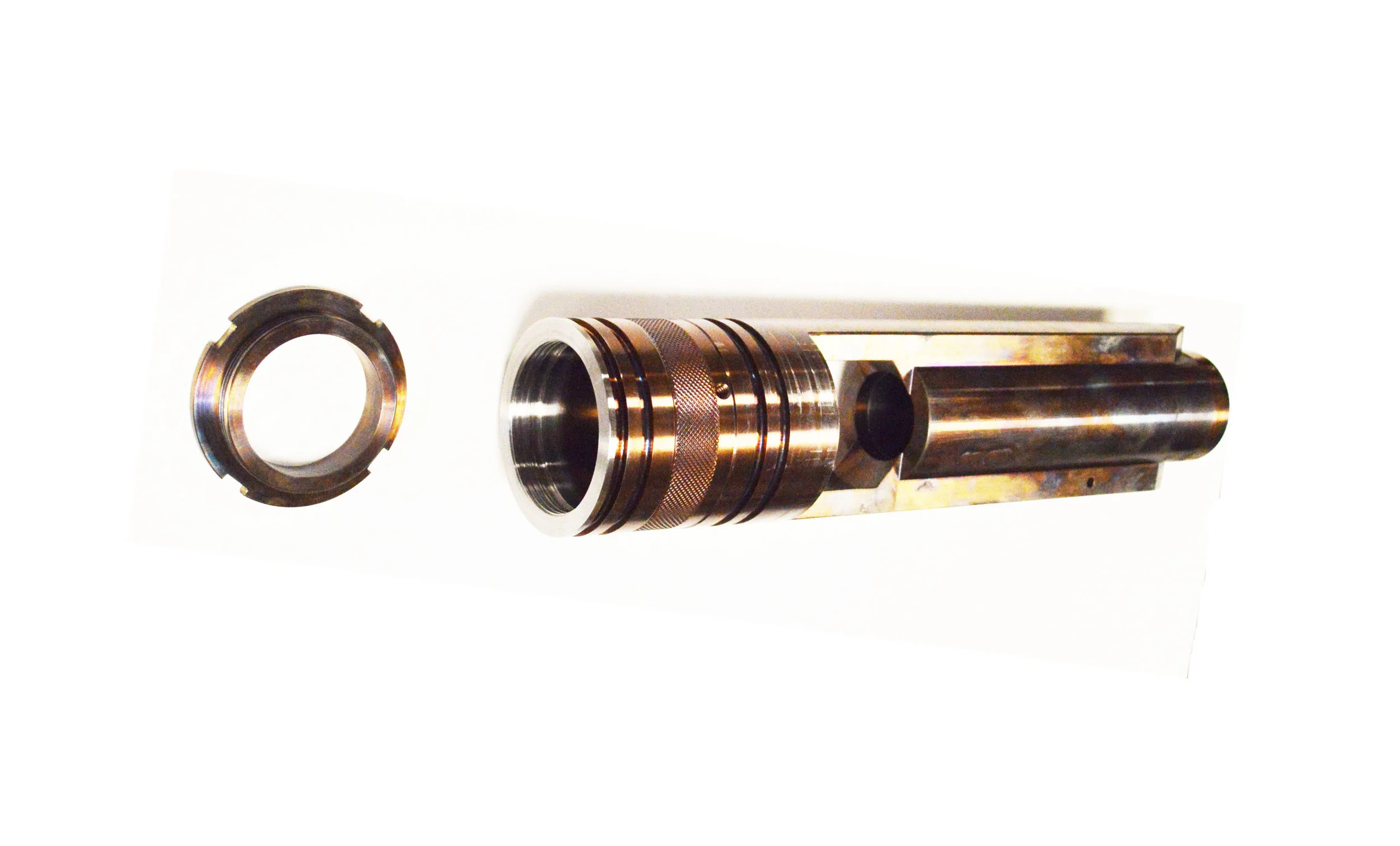

Threaded Bottom Sleeve Muleshoe – Designed by SMS to reduce cost and increase reliability.  If you’re seeing issues with the bottom snap ring washing on your muleshoe assembly, this is your solution!

Bottom Sleeves – multiple designs/material options available:

Standard Bottom Sleeve – available in 17-4 H900 Stainless Steel and Nitronic 50

All-in-one Bottom Sleeve available in Carbide

Muleshoe Sleeve Threaded Retainer Ring (for use with Threaded Muleshoe) –available in 17-4 H900 Stainless – Sizes Large, Medium, Small.

Two-Piece Bottom Sleeve – eliminates the need for the snap ring resulting in a more reliable maintenance process.

Muleshoe Retaining Ring

Large Muleshoe Sleeve Key

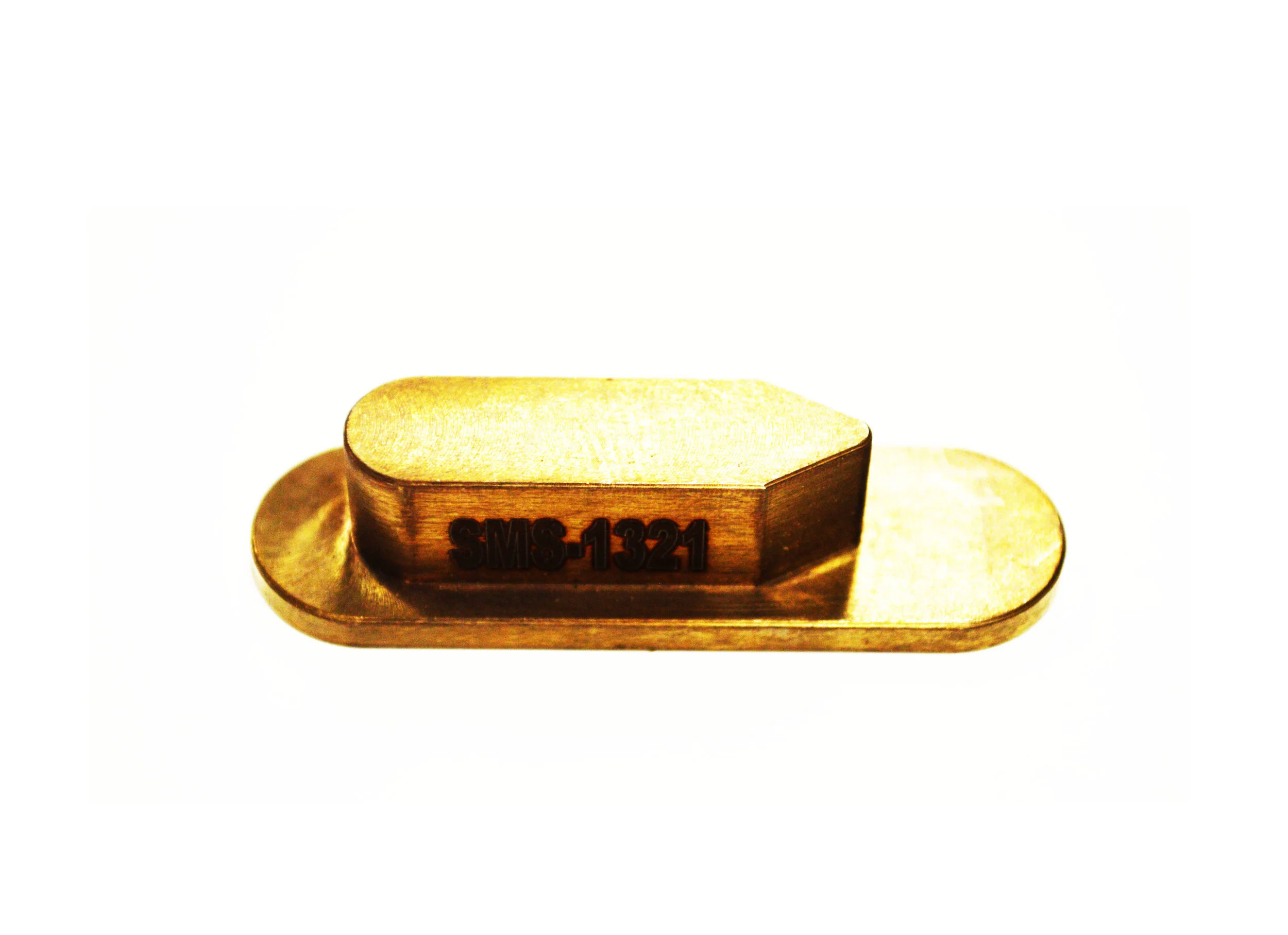

Small Muleshoe Sleeve Key

Medium Muleshoe Sleeve Key

Muleshoe Sleeve Wear Cuff with Slots

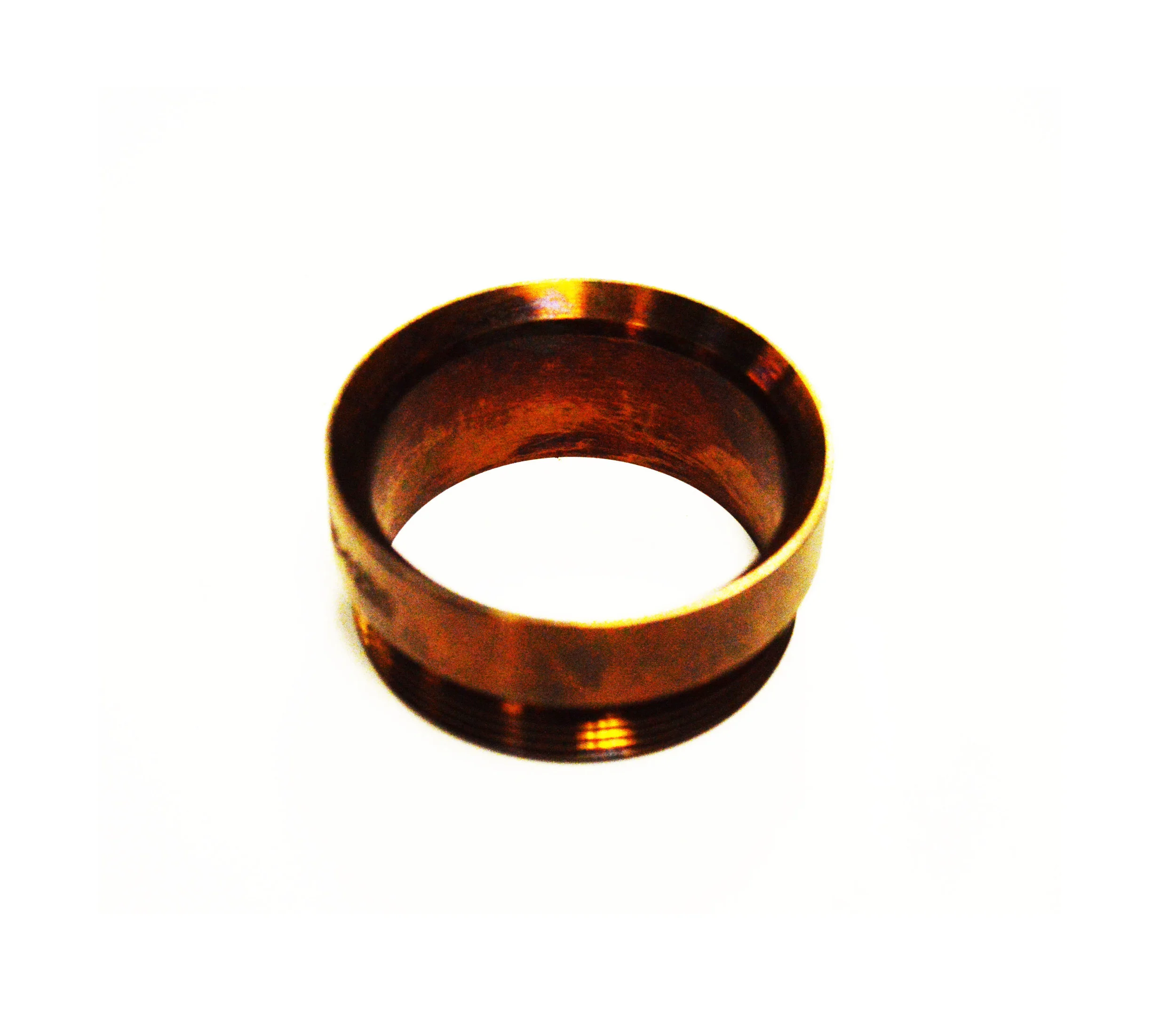

Muleshoe Sleeve Wear Cuff without Slots

SMS 1711 – Medium Threaded Retainer Wrench

SMS-T-607: Adj. Pin Spanner Wrench 1.25″ – 3.0″

SMS-T-608: Adj. Pin Spanner Wrench 2.0″ – 4.75″
